The Φ60mm × 130mm necked-in aerosol can sits between the shorter 100mm cans and the taller 200mm+ formats in the Φ60mm series. It offers a wider body than the 52mm and 57mm formats, without the extra height that some products do not need.
Manufactured by Guangdong Sihai Iron-Printing and Tin-Making Co., Ltd., it belongs to our Φ60mm necked-in series (height range 100–240mm).
[Product Image Placeholder]

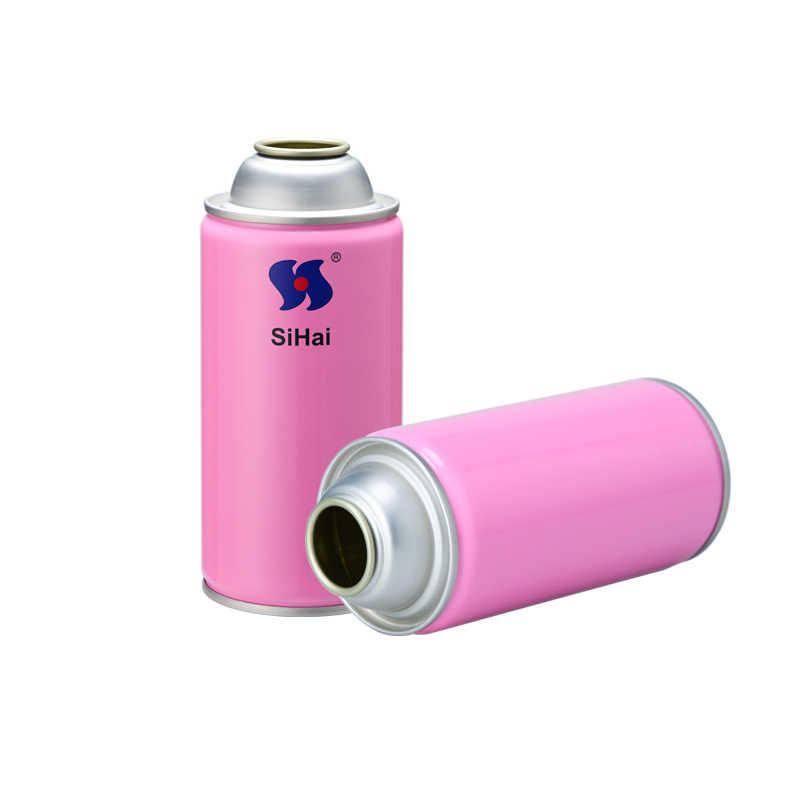

Insert: Φ60mm × 130mm Necked-in Aerosol Can – front view with SiHai logo
Insert: Φ60mm × 130mm Necked-in Aerosol Can – cone and dome close-up
Can Basics
Q: What are the core specifications?
A:
| Item | Detail |
|---|---|
| Diameter | Φ60mm |
| Height | 130mm |
| Can Type | Necked-in (NI) |
| Cone & Dome | 205 / 205A & 206 |
| Material | Tinplate |
| Body Thickness | 0.19–0.21mm |
| Cone Thickness | 0.28–0.40mm |
| Dome Thickness | 0.28–0.35mm |
| Internal Coating | With / Without |
| Cone & Dome Finish | Clear (varnish) / White / Gold lacquer |
| Pressure Version | Standard: ≥1.2MPa deformation, ≥1.4MPa bursting / High: ≥1.8MPa deformation, ≥2.0MPa bursting |
| Printing | Customized iron-printing |
| Packaging | Pallets or Cartons |
| MOQ | Negotiable |
| Delivery | Short and on-time, supported by automated lines |
Q: What heights are available in this series?
A: 100mm to 240mm within the Φ60mm necked-in series.
Q: Is there a straight wall version in 60mm?
A: Yes — the Φ60mm range also includes a straight wall (SW) format with cone and dome 207.5B & 208B, covering the same 100–240mm height range.
Coating & Finish
Q: Can I choose internal coating?
A: Yes — with or without internal coating, depending on your formulation and protection requirements.
Q: What cone and dome finishes are available?
A: Clear (varnish), white, and gold lacquer.
Q: Can I print my own design?
A: Yes — customized iron-printing is done in-house, covering the full can body with your artwork, colors, and safety markings.
Q: Can I combine internal coating with a specific finish?
A: Yes — internal coating and external finish are separate choices and can be combined.
Pressure & Valve
Q: What pressure versions are available?
A: Standard: deformation ≥1.2MPa, bursting ≥1.4MPa. High pressure: deformation ≥1.8MPa, bursting ≥2.0MPa.
Q: Which pressure version should I choose?
A: It depends on your propellant and formulation. High-pressure versions are typically used for gas-heavy formulations; standard versions suit most general aerosol products.
Q: Can I use standard aerosol valves?
A: Yes — the necked-in opening is designed for standard aerosol valves. Valve fit should be verified with your filling line and components.
Applications
Q: Where is this format commonly used?
A:
| Application | Fit |
|---|---|
| Air Freshener | Mid-size, wide body for household and commercial fragrance |
| Hair Spray | Familiar diameter for personal care products |
| Insecticide Spray | Mid-size format for household pest control |
| Body Spray | Compact body with moderate fill volume |
| Industrial & Technical Sprays | Durable construction for workshop products |
[Application Image Placeholder]
Insert: Air freshener application using Φ60mm × 130mm necked-in can
Insert: Hair spray application using Φ60mm × 130mm necked-in can
Production & Quality
Q: What is the production capacity?
A: Cone production runs on 16 fully automatic lines at 320 pcs/min. Dome production runs on 9 fully automatic lines at 900 pcs/min.
Q: How is quality controlled?
A: Production follows the can-making flow: slitting → welding → drying → can sealing → leak testing → packaging. All products are manufactured under ISO9001:2015 and GB13042-2008, supported by an independent laboratory and in-house mold development.
Q: Can I request a specific inspection or documentation?
A: Yes — inspection requirements and documentation needs can be discussed before production.
[Factory Image Placeholder]
Insert: Factory exterior
Insert: Fully automated aerosol can production line
Insert: Iron-printing workshop
Insert: Independent laboratory
Ordering
Q: How is the can packaged for shipment?
A: Pallets or cartons, planned to match your container loading and handling requirements.
Q: What is the delivery time?
A: Lead time depends on order quantity and customization. Short and on-time delivery is supported by automated production lines.
Q: What should I prepare before sending an inquiry?
A: Please prepare the following:
-
Target fill volume, or preferred height
-
Estimated order quantity
-
Internal coating preference (with or without)
-
Cone and dome finish (clear varnish / white / gold lacquer)
-
Pressure version (standard or high)
-
Artwork files or design references
-
Packaging preference (pallets or cartons)
-
Destination and delivery requirements
Q: Can I request samples?
A: Yes — sampling can be arranged before mass production.
Q: What is the MOQ?
A: Negotiable, depending on specification and order context.
